OSCILLATOR

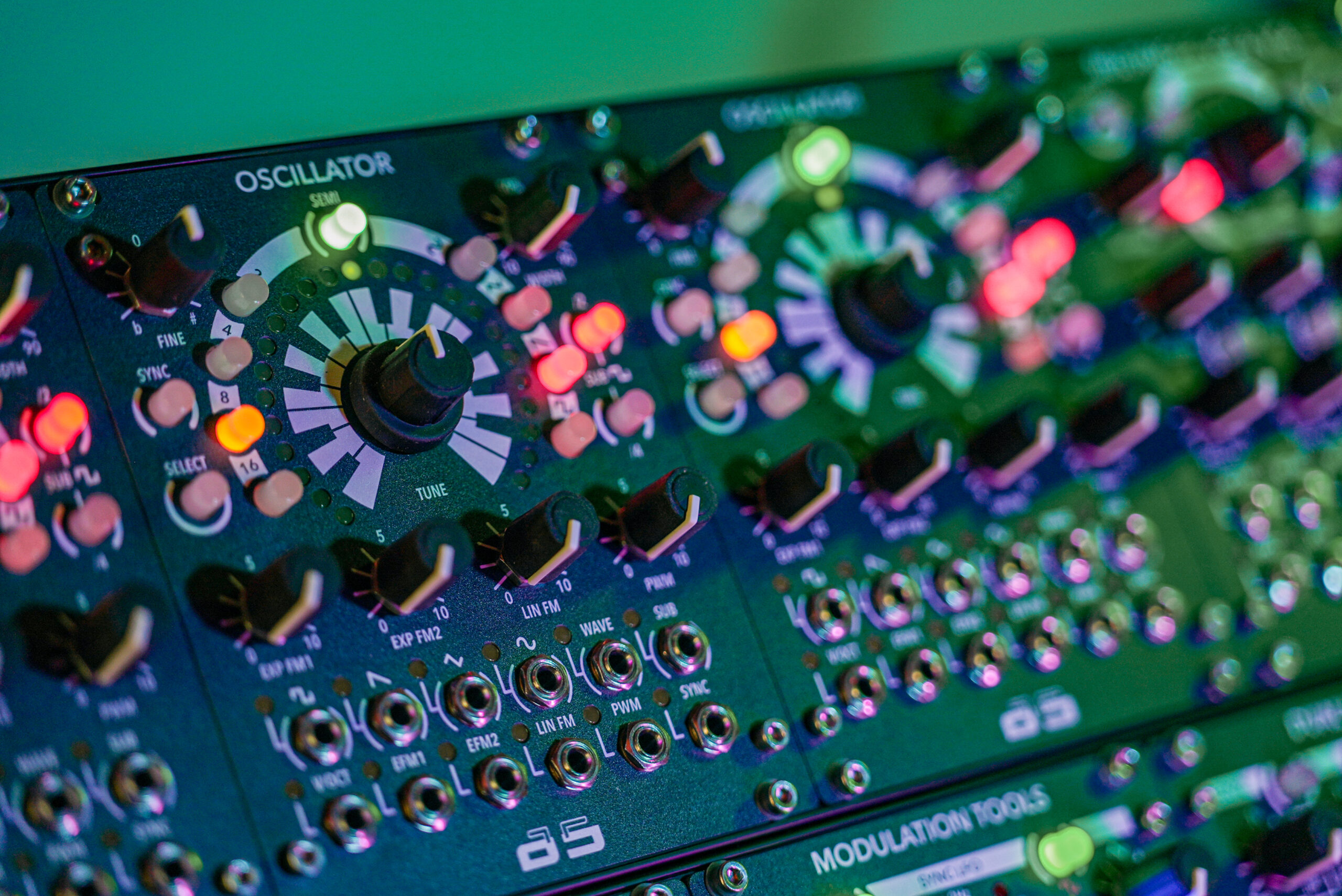

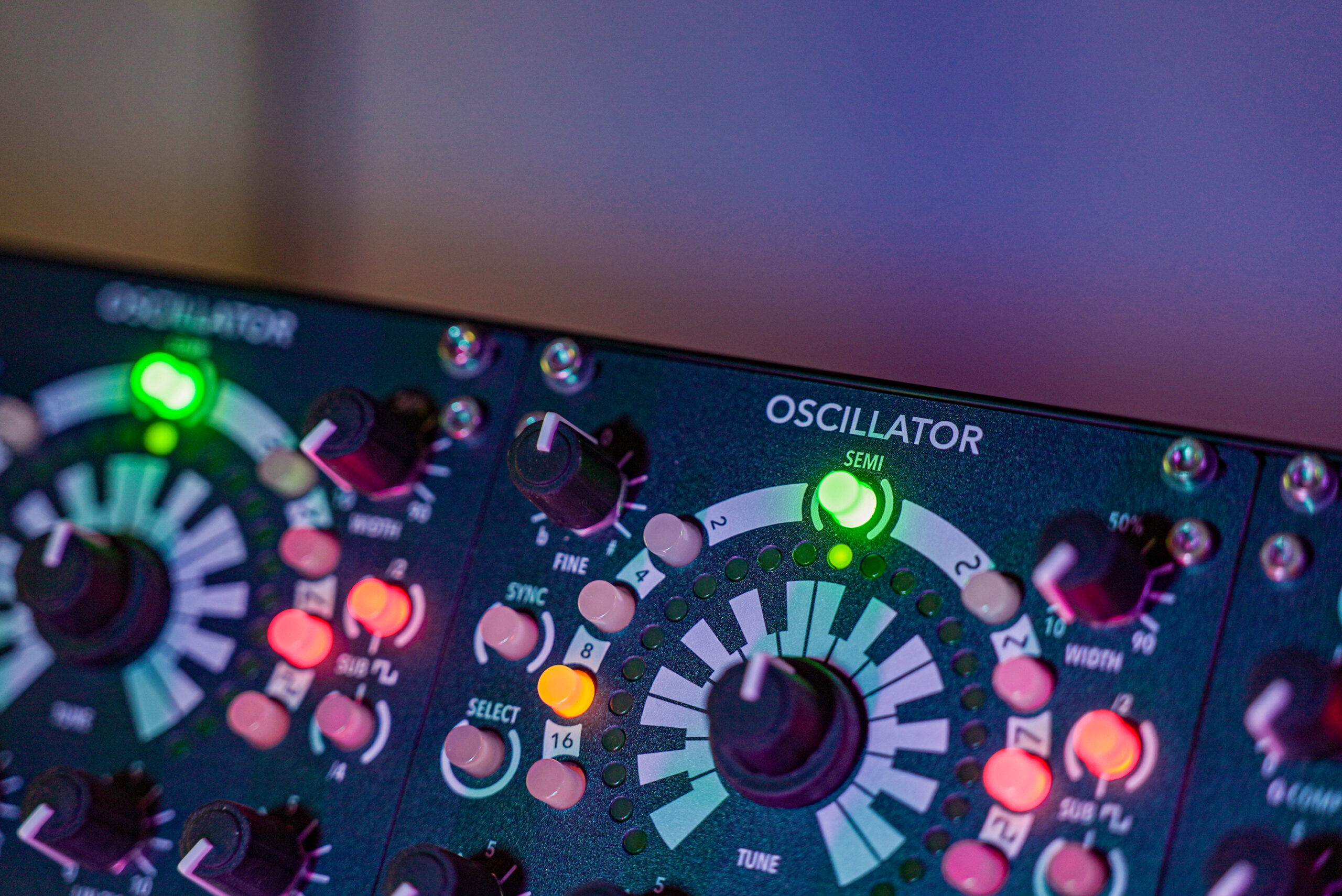

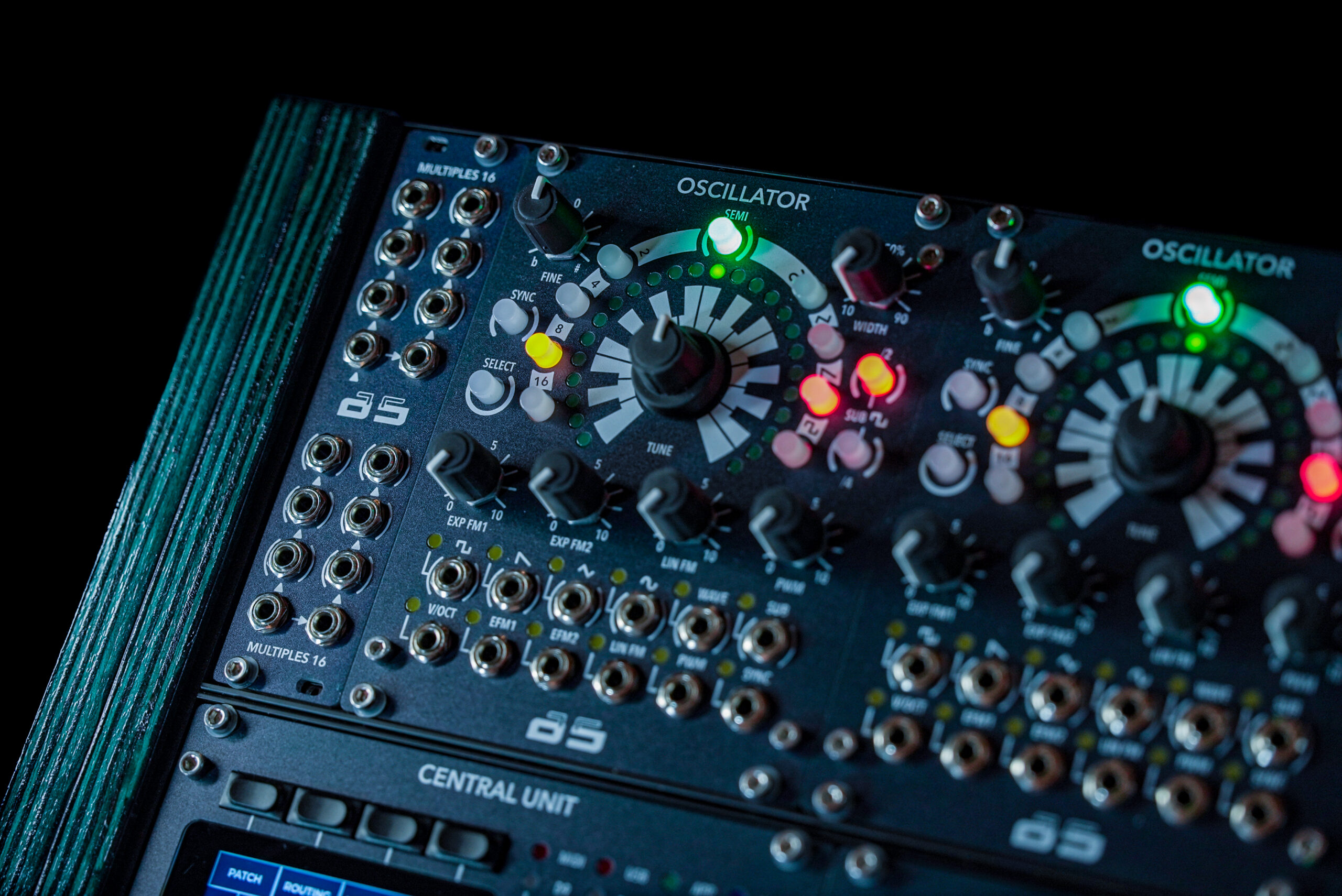

The OSCILLATOR is a robust, high-stability, SAW core, through-zero analog VCO. Its symmetrical waveform outputs are DC-coupled, meaning they are capacitor-free. The waveform output level is 10 Vpp. This is an audiophile-grade solution that ensures distortion-free waveforms across the entire spectrum.
The oscillator’s full frequency range spans 10 octaves, with a deviation of ± a few cents. Tuning is made extremely simple via the 16’, 8’, 4’, and 2’ RANGE buttons, along with a ±1 octave-scaled TUNE potentiometer. The TUNE knob can be configured to operate either continuously or in semitone steps.
In addition to the V/OCT input, there are two exponential FM inputs and one linear FM input, all individually controllable.
The module also features a switchable HARD SYNC input and a controllable PWM input. The square wave pulse width can be adjusted between 10% and 90%.
Alongside the individual SQR, SAW, TRI, and SINE waveform outputs, there is a selectable WAVE output and a SUB OSC output. The SUB OSC can optionally divide the square wave frequency by two or four.
Hidden Parameters of the OSCILLATOR
This menu contains all calibration parameters for the oscillator: Initial Tune, Scale, HF Compensation, Initial Pulse Width
Module features of ASR101B OSCILLATOR:
Block diagram of ASR101B OSCILLATOR:
Owner’s manual:
Be the first to review “OSCILLATOR”
You must be logged in to post a review.
