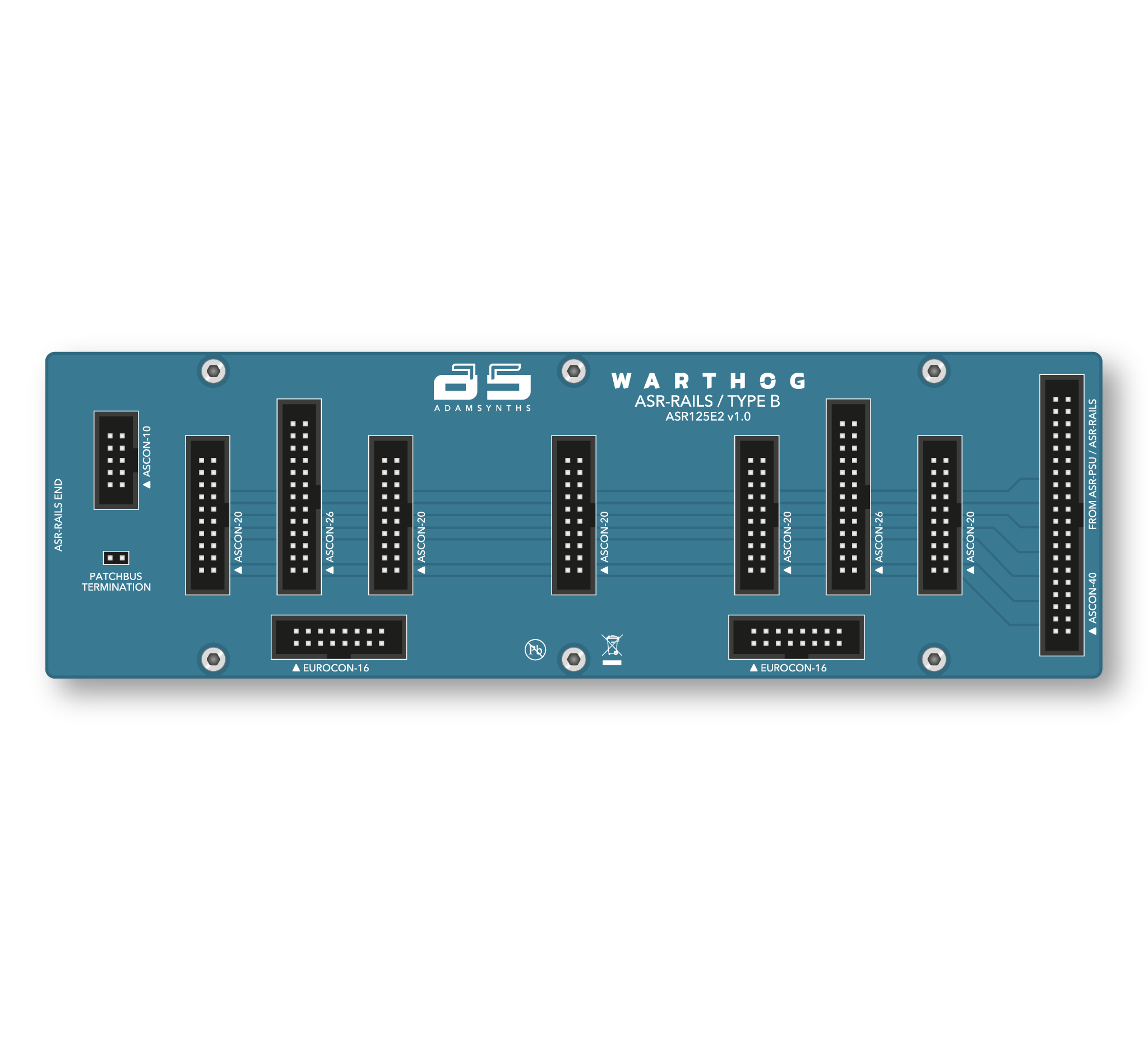

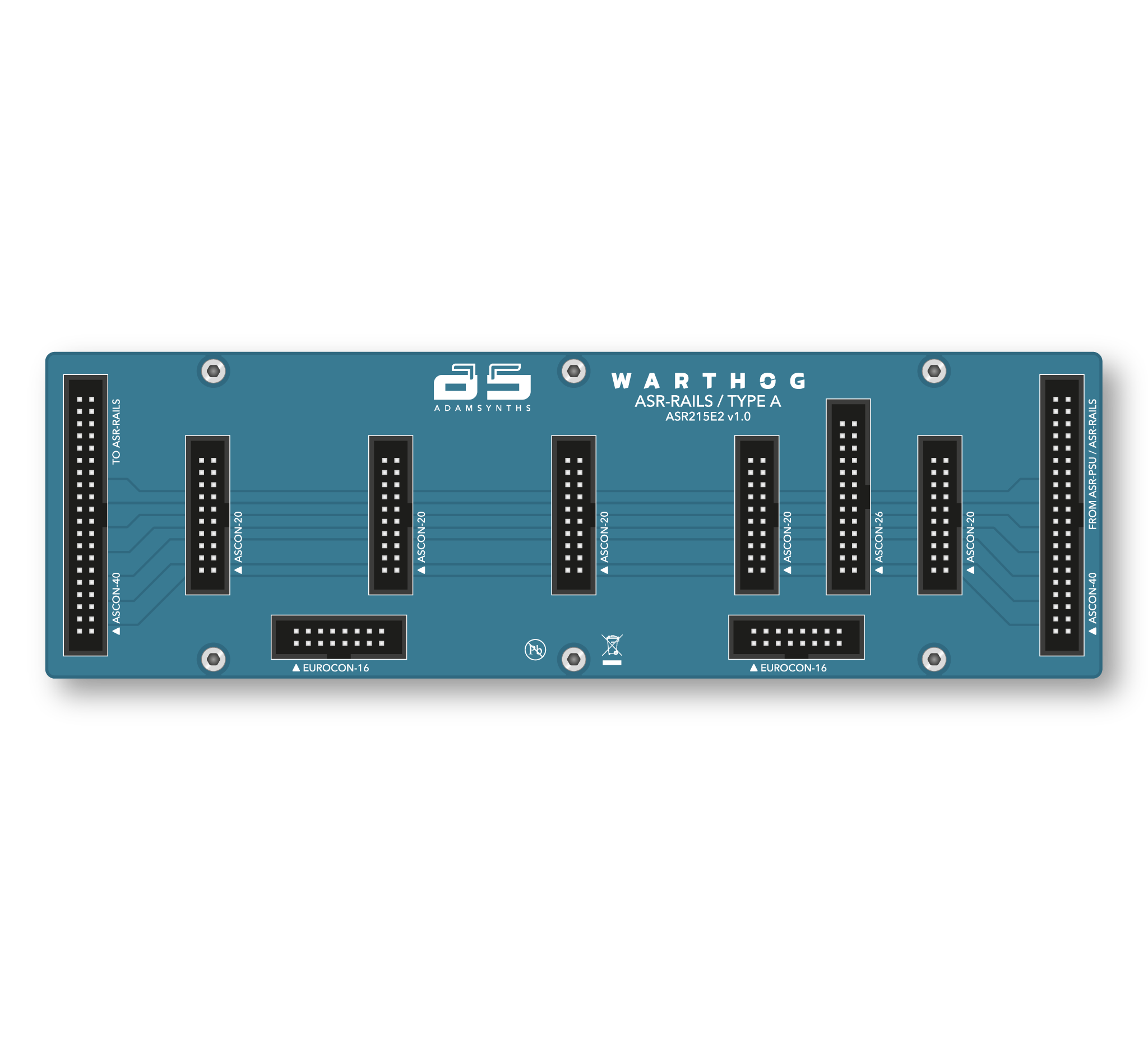

ASR-RAILS
Electronic Distribution System for Adamsynths™ Warthog Modules and Eurorack Compatibility.
The ASR-RAILS is a dedicated electronic distribution layer developed for the Adamsynths™ Warthog modular synthesizer system, responsible for both power delivery and the physical infrastructure of PatchCon internal communication channels.
Due to the elevated power requirements and inter-module communication demands introduced by Total Recall, Warthog modules do not use conventional 16-pin Eurorack ribbon cables. Instead, they connect via a custom interface optimized for high current capacity and digital data transmission.
Despite its specialized architecture, ASR-RAILS is fully compatible with standard Eurorack modules from other manufacturers, supporting their power needs and allowing seamless integration into the Warthog ecosystem.
ASR-RAILS units are chainable, enabling multiple distribution layers to be linked together for expanded configurations, while maintaining stable power delivery and uninterrupted PatchCon communication across the system.
Additional information, technical details, and product photos will be available soon.
System architecture of ASR-PSU & ASR-RAILS:
