OUTBOARD

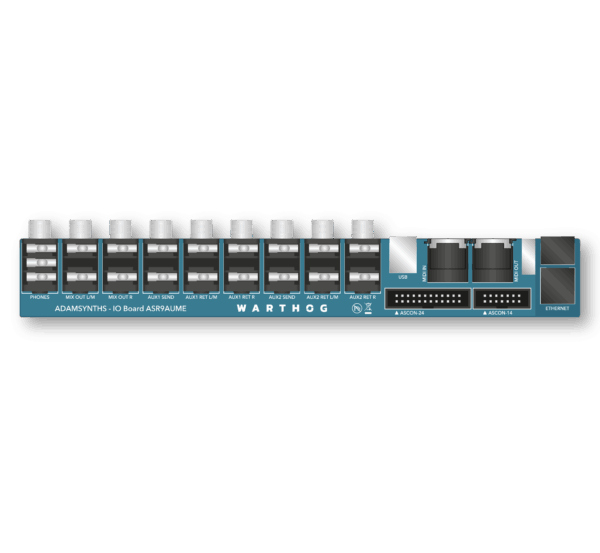

The ASR9AUME Outboard is the dedicated outboard interface of the Warthog system, providing external connectivity for both the Mixbooth and the Central Unit. All connectors are located on the rear panel of the Warthog for convenient access, without interfering with patch cabling or module operation.
Mixbooth Connectors:
- Stereo Headphone Output
- Stereo Main Output
- 2 AUX Sends (AUX Send 1&2)
- 2 Stereo AUX Returns (AUX Return 1&2)
Central Unit Connectors:
- MIDI IN / OUT (5 pin DIN)
- USB MIDI (USB-B)
- Ethernet
Additional information, technical details, and product photos will be available soon.
Block diagram of ASR9AUME OUTBOARD:
