The Adamsynths™ Warthog is an analog modular synthesizer equipped with Total Recall technology. It is the first analog modular synthesizer in the world to feature full patch memory and recall. And yes. This is not a digital platform. Not a virtual modular synthesizer. This is a 100% analog sound engine, Eurorack format, plug & play [...]
This module serves as the central hub of the Warthog system. It facilitates communication between modules, handles MIDI–CV conversion, and provides the unique Adamsynths™ TOTAL RECALL feature, allowing patches to be saved and recalled. The interface includes navigation and function buttons, an encoder, a 2.8-inch touchscreen display, and 12 analog CV outputs alongside 12 “digital” [...]
Two wooden control wheels designed for morphing between snapshots and modulating that morphing process. Mood Wheels allows you to completely reshape the sound of the Warthog within a single patch, making the music more expressive and alive. It’s called “MOOD” rather than “MOD” for a reason — this is about shaping the mood, not just [...]
The OSCILLATOR is a robust, high-stability, SAW core, through-zero analog VCO. Its symmetrical waveform outputs are DC-coupled, meaning they are capacitor-free. The waveform output level is 10 Vpp. This is an audiophile-grade solution that ensures distortion-free waveforms across the entire spectrum. The oscillator’s full frequency range spans 10 octaves, with a deviation of ± a [...]
A modern, universal multimode VCF and VCA combined in a single module, featuring an integrated mixer and overdrive functionality. Four selectable filter modes are available: 4-pole low-pass, 2-pole low-pass, 2-pole band-pass, and 2-pole high-pass. In low-pass modes, Q-compensation is not only switchable but also adjustable, allowing you to fine-tune how much low-frequency content is restored [...]
The unit designed for generating and processing modulation signals includes a Sync LFO, a White Noise Generator, a Sample & Hold, a VC Glide, and a VCA & Inverter or Ring Modulator circuits. These submodules are internally pre-wired and closely integrated, but the internal connections can be broken using the front-panel jack connectors, allowing each [...]
A single module combining an ADSR and a DADSR-type, CV-controllable envelope generator. The envelope generators operate in either GATED or TRIGGERED mode, which determines LEGATO or STACCATO playing behavior. Gated – The envelope remains active as long as the gate signal is held. In legato playing, it does not retrigger. Triggered – The envelope restarts [...]
This module is designed for stage use and managing complex patches. Its main purpose is to eliminate the need for physically rearranging patch cables. With the help of snapshot functions, it can dynamically reroute connections within a single patch. The MATRIX 428 features four inputs and eight outputs, all capable of routing audio, CV, and [...]
This two-channel, fully analog stereo mixer module is tightly integrated into the Warthog system, built directly into the Warthog’s enclosure. It offers two AUX sends, two stereo returns, a stereo mix output, and a headphone output, playing a key role in managing internal signal levels, shaping effect paths, and enabling monitoring. The two mono channel [...]
Smart Signal Distribution, Fully Passive The Multiples 16 is a 4-input, 12-output passive signal distributor that dynamically adapts to your patching setup. Inputs follow a priority-based logic, automatically claiming their respective output groups based on how many inputs are connected. Behavior: If only the first input is connected, its signal is distributed to all 12 [...]
High-Performance Power Supply for Adamsynths™ Warthog Modules and System. The ASR-PSU is a high-performance power supply designed specifically for the Adamsynths™ Warthog modular synthesizer system, engineered to meet the elevated power demands of its advanced modules. Due to the complexity and functionality of the Warthog modules — particularly those supporting Total Recall — the system [...]

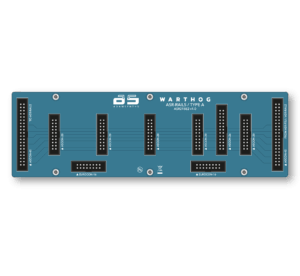

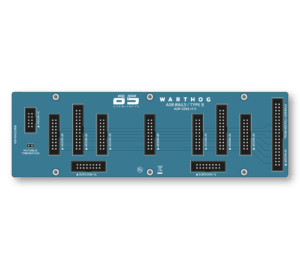

Electronic Distribution System for Adamsynths™ Warthog Modules and Eurorack Compatibility. The ASR-RAILS is a dedicated electronic distribution layer developed for the Adamsynths™ Warthog modular synthesizer system, responsible for both power delivery and the physical infrastructure of PatchCon internal communication channels. Due to the elevated power requirements and inter-module communication demands introduced by Total Recall, Warthog [...]
